What is a Zero Turn Mower (ZTR)? – Segway Navimow

A zero turn mower can cut your mowing time by 40% or more compared to a standard riding mower on a property with trees, flower beds, and other obstacles. That number matters because it’s the core reason a mower ztr commands a $1,000–$3,000 price premium over a comparable riding mower. Whether that premium makes sense for your property depends on terrain, yard size, and how you actually use the machine.

ZTR is shorthand for zero turning radius — a design where the mower can spin in place around its own center point. That’s not a marketing claim. It’s a mechanical reality built into how the drive system works.

A Zero Turn Mower Is Defined by Its Turning Radius — Literally Zero

A mower ztr earns its name from a specific mechanical capability: the ability to rotate 360 degrees around a fixed center point without any forward or rearward movement. A standard riding mower needs several feet of space to complete a turn. A ZTR needs none.

Zero turning radius (ZTR): a drive configuration in which each rear wheel is independently powered, allowing one wheel to rotate forward while the other rotates in reverse, producing a pivot turn with a turning radius of zero inches.

This matters most around obstacles. A tree, a mailbox post, a garden bed edge. A ZTR can circle each one tightly and cleanly in a single pass. That’s the mechanical basis for the efficiency claims you’ll see from every manufacturer.

How the Zero Turn Mechanism Actually Works

The zero turn capability comes from three connected design choices: independent rear wheel drive, hydrostatic transmission, and front caster wheels. Remove any one of those three and the system doesn’t work.

Independent Rear Wheel Drive and Hydrostatic Transmission

Each rear wheel on a ZTR is driven by its own separate hydrostatic transmission. A hydrostatic transmission uses hydraulic fluid pressure (rather than gears) to transfer engine power to the wheels, which means the operator can vary each wheel’s speed continuously from full reverse to full forward with no clutch or gear shift.

When both rear wheels spin at the same speed in the same direction, the mower goes straight. When one wheel slows or stops, the mower turns toward that side. When one wheel goes forward while the other goes in reverse, the mower pivots in place. Husqvarna, Toro, and Cub Cadet all use this same dual-hydrostatic layout on their residential ZTR lines.

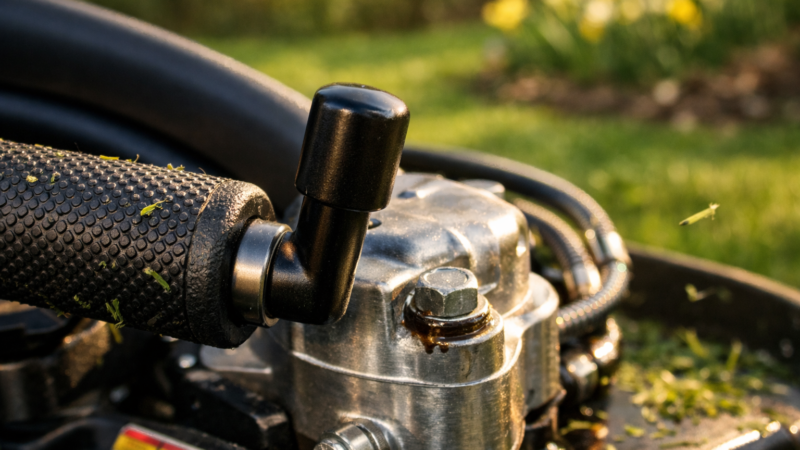

Lap Bar Controls: What You’re Actually Moving When You Steer

The two lap bars are directly connected, mechanically or via hydraulic linkage, to the control valves of each hydrostatic transmission. Push both bars forward equally: both wheels drive forward at the same rate. Pull the left bar back while pushing the right bar forward: the left wheel reverses while the right wheel drives, and the mower pivots left.

New operators consistently underestimate how sensitive this input is. A small asymmetric push produces a sharper turn than expected, which is why first-time ZTR users often scalp turf on the first few passes around obstacles. The control response is not like a steering wheel. It’s more like differential thrust on an aircraft: small inputs, big effects.

Why the Front Wheels Are Casters, Not Drive Wheels

The front wheels on a ZTR are caster wheels, free-spinning, unpowered, and able to rotate 360 degrees on a vertical axis. They follow the rear wheels rather than leading them. This is what makes the zero-radius pivot physically possible: there’s nothing up front resisting the turn direction.

A riding mower or garden tractor has its front wheels linked to a steering system with a fixed geometry. That geometry forces a minimum turn radius. On a ZTR, the front casters just trail wherever the rear drive wheels point them, with no mechanical resistance.

ZTR vs. Riding Mower vs. Garden Tractor: What the Differences Mean in Practice

These three machine types overlap in price and appearance but serve different purposes. A ZTR is optimized for fast, precise mowing. A riding mower is a general-purpose machine for moderate-size lawns. A garden tractor is built to run attachments (snow blowers, tillers, carts) with mowing as one of several jobs.

Deck Size, Cutting Width, and Ground Speed Compared

A residential ZTR typically runs a 42- to 54-inch deck at 6–8 mph, while a standard riding mower runs a 30- to 46-inch deck at 4–6 mph. The combination of wider cut and higher speed is where the time savings come from. On a half-acre lawn with moderate obstacles, that difference can translate to 20–30 fewer minutes per mow.

Commercial ZTR models from brands like Scag, Ferris, and Bad Boy push deck widths to 60 or 72 inches and top speeds past 10 mph. Those specs are built for properties measured in acres, not square feet.

PTO Attachments: Where Garden Tractors Win and ZTRs Don’t

A power take-off (PTO) shaft lets a tractor run implements that need their own rotary power: snow blowers, rear tillers, aerators, wood chippers. Garden tractors are designed around this capability. Most residential ZTRs have no rear PTO at all, and the few that do offer limited compatibility with attachments.

If you need to plow a driveway in winter or till a garden bed in spring with the same machine that mows in summer, a garden tractor is the correct choice. A ZTR will not replace it. For homeowners who mow and nothing else, that limitation is irrelevant — but it’s worth knowing before you buy.

Speed and Efficiency Gains Are Real — But Only Above Half an Acre

On a lawn under half an acre, a ZTR saves you maybe five to ten minutes per mow over a standard riding mower. That’s not nothing, but it’s not the dramatic time savings the marketing suggests. The efficiency advantage becomes meaningful at roughly 0.5 to 1 acre and grows significantly above that threshold.

The math is straightforward. A 54-inch deck at 7 mph covers about 1.5 acres per hour in open cutting. A 42-inch deck at 5 mph covers roughly 0.9 acres per hour. On a small, open lawn, both machines finish so quickly that the difference is minor. On a one-acre property with a dozen trees and curved beds, the ZTR’s ability to make tight, clean passes without repositioning adds up fast.

Here’s where the real time savings stack up on larger properties:

1. Fewer three-point turns — a ZTR pivots in place rather than requiring a reverse-and-reposition sequence at the end of each row.
2. Tighter passes around obstacles — one clean circle around a tree instead of multiple partial passes with a wider swing radius.
3. Higher ground speed — most residential ZTRs run 6–8 mph versus 4–6 mph for riding mowers, cutting total mow time on long straight runs.
4. Wider deck coverage — a 54-inch ZTR deck covers about 29% more ground per pass than a 42-inch riding mower deck.
5. Less overlap needed — the precision of lap bar steering lets operators keep tighter swath lines, reducing the redundant strip mowed twice.

On a two-acre property with average tree density, the combination of these factors can cut mow time by 40% or more compared to a mid-range riding mower. Below half an acre, most of those advantages compress into near-nothing because the total mow time is already short.

The efficiency case for a ZTR is real. It just requires enough lawn to express itself.

Slope and Terrain Limitations Most Buyers Underestimate

A ZTR handles flat and gently rolling terrain well. On slopes steeper than 15 degrees, it becomes a liability. Most residential ZTR models are rated for a maximum side slope of 15 degrees, which is less steep than many homeowners assume. A 15-degree incline looks modest but is enough to cause lateral sliding on a machine that relies on rear-wheel traction alone.

The 15-Degree Rule and Why It Matters on Residential Lots

Fifteen degrees is roughly a 27% grade. Many suburban lots have sections that exceed this, particularly near drainage swales, berms, or sloped backyards. The problem is not just tipping. The rear caster-free drive wheels lose lateral grip on a slope, and the front casters offer no corrective steering, so the mower slides downhill rather than tracking the contour. Husqvarna’s operator manuals explicitly state this 15-degree limit for their residential ZTR line, and most other manufacturers match it.

Wet Grass, Uneven Ground, and Traction Loss

Wet turf makes the slope problem worse. On dry grass, the large rear drive tires grip reasonably well on gentle grades. On wet grass, traction loss can occur on slopes as shallow as 8–10 degrees, and a ZTR’s weight distribution (engine over the rear) increases the risk of a rear-wheel spin-out rather than a controlled stop. Uneven ground — ruts, exposed roots, or soft soil — causes the deck to scalp on high spots and miss on low ones. A ZTR’s fixed deck height doesn’t self-level the way some tractor-mounted decks do.

What a ZTR Actually Costs: Residential vs. Commercial Models

Entry-level residential ZTRs start around $2,500. Commercial-grade machines from brands like Scag or Ferris can exceed $15,000. The gap reflects engine size, frame construction, deck thickness, and transmission durability, not just brand markup.

The biggest cost jump is from residential to prosumer, where you cross from consumer-grade hydrostatic pump assemblies to commercial-rated ones. Repair costs reflect this: replacing a residential hydrostatic transmission runs $400–$700 in parts; a commercial pump assembly can run $900–$1,500. Wider decks also mean more blades, more spindles, and higher blade replacement frequency. A 60-inch deck runs three blades versus two on a 42-inch deck.

Who Should Not Buy a Zero Turn Mower

Three buyer profiles consistently end up disappointed with a ZTR: owners of small yards, anyone on a tight budget, and homeowners with genuinely hilly properties. If you fit one of those descriptions, a riding mower or a garden tractor will serve you better.

Small Yards, Tight Budgets, and Hilly Properties

On a lawn under a quarter acre, a ZTR’s maneuverability advantage never has room to pay off. The mow is over in 15–20 minutes regardless of machine type, and you’re spending $2,500 or more for a speed benefit you can’t actually use. A rear-engine riding mower in the $1,200–$1,800 range covers the same ground without the price premium.

Hilly properties are a harder mismatch. If more than a quarter of your yard slopes past 15 degrees, a ZTR becomes a machine you’ll avoid using in those areas — which means either a second mower or a lot of trimming with a walk-behind.

The Learning Curve Is Steeper Than Dealers Admit

New ZTR operators routinely over-steer during the first few hours, which causes the rear tires to spin in place and tear turf. This is called zero-radius pivot damage, and it’s common enough that most dealers mention it briefly — then move on. Expect to spend two to four mowing sessions developing the muscle memory to feather the lap bars instead of yanking them.

The turf damage from early over-steering is real and sometimes takes weeks to recover. If you’re renting before buying, budget at least two hours of practice on a low-stakes area before trusting yourself near flower beds or lawn edges.

Frequently Asked Questions

How is a ZTR different from a regular riding mower?

A ZTR uses two independently driven rear wheels controlled by lap bars, with no front-wheel drive. A standard riding mower uses a steering wheel and front-wheel steering. The ZTR can spin in place; a riding mower needs a multi-point turn to reverse direction.

Can a ZTR mow hills safely?

Only up to about 15 degrees (roughly a 27% grade) on dry ground. Beyond that, most residential ZTR models lose lateral traction and can slide downhill. Wet conditions reduce that safe limit to around 8–10 degrees.

How long does a residential ZTR last?

Entry-level residential models are built for roughly 500–800 hours of use. Mid-range models typically reach 800–1,200 hours before major drivetrain work is needed. Commercial units are rated past 2,500 hours with proper maintenance.

Do ZTRs require more maintenance than riding mowers?

Yes, in a few specific areas. The hydrostatic transmission needs fluid checks and periodic filter changes that a gear-drive riding mower doesn’t require. Multiple deck spindles and extra blades also add to service frequency. Budget roughly 20–30% more annual maintenance cost compared to a comparable riding mower.
